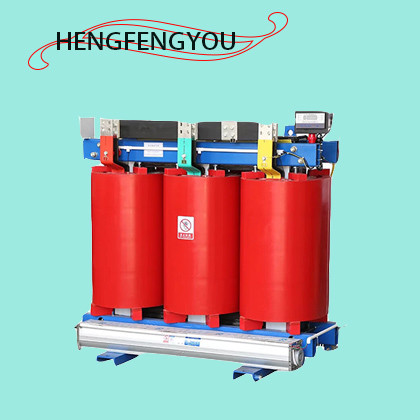

SCB10 11 0.4kv Dry Type Power Transformer 10KV / 30 - 2500KVA Epoxy Resin Cast 1000kva

Product Categories
Qingdao Hengfengyou Electrical Engineering Co., Ltd.
Contact Now

SCB10 11 0.4kv Dry Type Power Transformer 10KV / 30 - 2500KVA Epoxy Resin Cast 1000kva

  • 1
  • 2
  • 3

Brand Name : HENGFENGYOU

Model Number : SCB12

Place of Origin : China

MOQ : 1

Price : 200-200000/piece

Supply Ability : 5000 pieces/year

Delivery Time : 15 DAYS

Packaging Details : wood pack

Certification : ISO IEC CB COC KEMA SNI SABS CCC

Usage : Power,Distribution Transformer

Phase : single,Three

Rated capacity : 30-3000kva

Type : Dry type,Cast Resin

Material : Copper,amorphmos alloy,EXPOY RESIN

Input voltage : 11kv/10.5kv/10kv/6.3kv/6kv

Efficiency : High Efficiency

Low voltage : 10 - 0.4/0.23kV

Color : red

Payment Terms : LC T/T

Contact Now

Company introduction

Qingdao Hengfengyou -we can produce a variety of epoxy resin casting transformers with a voltage rating of 500kV or less and a capacity of 400MVA or less. The variety includes SC10, SCB11 and SC12 series. The product is widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.

SCB10 11 0.4kv Dry Type Power Transformer 10KV / 30 - 2500KVA Epoxy Resin Cast 1000kva

Executive Standard
GB 1094 Electrical Transformer
IEC 60076 Electrical Transformer
GB/T10228 Specification and Technical Requirements for Dry-type Power Transformers
JB/T10008 6kV~500kV Power Transformer Sound Level
GB/T7354 Partial Discharge Measurements
Type Meaning
S Three Phase
C Solidification Forming (Epoxy Resin Cast)
(Z) Load Voltage Regulation
(B) Low-Voltage Foil Coil
Characteristic Code
Rated Capacity (kVA)
Rated High Voltage (kV)

Features of China Manufacturer HENGFENGYOU Explosion Proof Dry Type Power Transformer Indoor

1. Low consumption, energy saving, low noise, no maintenance, no pollution and can be directly installed in the load center;
2. Strong resistance to short circuit, low partial discharge, high reliability
3. Strong cooling capacity, can be operated under 140% rated load in the condition of forced air cooling;
4. Corrosion resistance, moisture resistance, flame resistance, fire resistance, can be operated in high humidity and other harsh environments;
5. Equipped with intelligent temperature controller, which can be monitored and controlled centrally to ensure the reliable operation of the transformer.

Technical parameters:

Model SCB10-500/10 Capacity 500 KVA
Primary Voltage 10KV , 11KV Secondary Voltage 0.4 KV
Rated current(H.V.) 28.87A Rated current (L.V.) 721.7 A
Vector Group DYN11 Insulation & Heatproof Class F
Max.temperature rising 100K Short-circuit impedance 4.10 %
phase 3 Frequency 50Hz
Cooling Method AN / AF Net Weight 1810Kgs

35KV dry type power transformer with off-load tap changer

Rated capacity

(KVA)

 Rated Voltage(KV) Coupling group Loss(W) No-load current(%) Noise (B)
HV Tap change LV

Impedance

voltage(%)

 N0-load Load
800

35 or

38.5

±5% or

±2×2.5%

3.15,6

,6.3,10

10.5

or 11

Yyn0

Dyn11

 6 2220 8180 0.6 50
1000 2640 9480 52
1250 3090 11210
1600 3640 13440 0.5 53
2000 7 4180 15830 54
2500 4800 18970 56
3150 8 5960 21280 0.4
4000 6930 25570 55
5000 8270 30350 58
6300 9780 35460 0.3
8000 9 11200 40000
10000 12800 48250
12500 15560 56080 0.2 60
16000 19110 65980 61
20000 10 22670 74230 62


Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.

SCB10 11 0.4kv Dry Type Power Transformer 10KV / 30 - 2500KVA Epoxy Resin Cast 1000kva

SCB10 11 0.4kv Dry Type Power Transformer 10KV / 30 - 2500KVA Epoxy Resin Cast 1000kva

ATTENTION:
1. The payment term: We accept TT,30% deposit and Pay 70% before shipment.
2. The delivery time: Usually it will take about 15-20 days.
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
3. The standard of package: Usually use strong wood case for protection.

OUR SERVICE:

1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.
